35mm/ 1.37inches Concealed Hinge Jig

FEATURES

• Easy To Use: Install a 35mm hole opener, adjust the drilling depth to 12-13mm normally, and then lock the limit ring.
• Durable Material: Made of aluminum alloy, precise manufacturing, accurate positioning and convenient operation. long lasting.
• Easy To Adjust: The drill guide can be adjusted to tension wood boards of different thicknesses. For furniture factories and woodworking enthusiasts, this is a great tool kit.

INSTALLATION METHOD

1. Install a 35mm hole opener, adjust the drilling depth, which is normally 12-13mm, and then lock the limit ring.
2. Adjust the fixed size of the black pressing block of the quick clamp (note: the tool can adjust the fixed board size to 15-25mm).

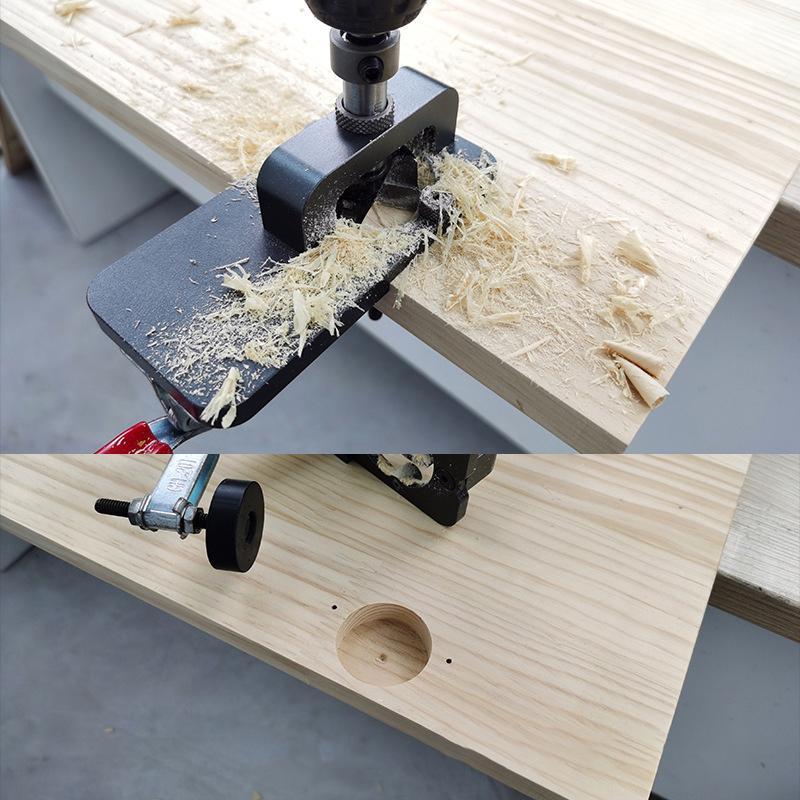

3. Move the hole punch to the board marking and punching position, and lock the quick clamp.
4. Fasten the handle of the hole opener with the electric drill, press down the hole at a constant speed to a depth of 12-13mm, and then drill 2mm screw holes on the left and right sides.
5. The distance from the 35mm hole to the edge is 5mm (the distance cannot be adjusted), which is suitable for most common hinges.
6. Install the 35mm hinge.

SPECIFICATIONS

• Material: Aluminum alloy
• Color: Gray
• Size: 4.72*4.72*2.36inch/120*120*60mm
• Weight: 1.34lbs

PACKAGE

• 1*35mm/ 1.37inches Concealed Hinge Jig Include:

  1*hinge punch locator body;

  1*35mm hole opener (with limit ring);

  2*spanner;

  1*2mm drill bit;

  1*hexagon wrench
